OVS Mirror Offload – Monitoring Without Impacting Performance

OVS mirror offload – monitoring without impacting performance

In a recent blog, I talked about the performance improvement that can be achieved running VXLAN using HW offload. In this blog I will be discussing another important feature that we have been working on in the Napatech OVS offload initiative: mirror offload.

Rumor has it that turning on OVS mirror has a great performance impact, but I have not previously experimented with it. In continuation of the OVS HW offload, I will therefore now move on to explore the performance gains that can be achieved by offloading traffic mirroring.

Like standard OVS+DPDK, Napatech supports forwarding of mirror traffic to virtual or physical ports on a bridge. In addition, Napatech can deliver the mirror to a high speed NTAPI stream (Napatech API, a proprietary API widely used in zero-copy, zero packet-loss applications). The NTAPI stream can be used by a host application to monitor the mirrored traffic at very low CPU overhead.

OVS mirror test cases

In order to test OVS mirroring I need to settle on a test setup. I want to test the following items:

  1. Establish a baseline for what a VM can do
    This is needed to determine if activating mirror affects the VM. The baseline of interest is

    1. RX only VM capability – useful to determine what the mirror recipient can expect to receive
    2. Forwarding VM capability – useful to determine what an external mirror recipient can expect to receive
  2. Standard OVS+DPDK with mirror to
    1. Virtual port – recipient is a VM on the same server
    2. Physical port – recipient is the external traffic generator
  3. Napatech full offload additions to OVS+DPDK with mirror to
    1. Virtual port – recipient is a VM on the same server
    2. Physical port – recipient is the external traffic generator
    3. Host TAP – recipient is an application (using Napatech API) running on the host

Note 3.c applies to Napatech, I am not even sure that this is possible with standard OVS+DPDK, maybe someone can enlighten me?

Test setup

I use a setup consisting of two servers, Dell R730 and ASUS Z9PE-D8 WS, each with a NT200A01 configured to run 40Gbps instead of 100Gbps.

Dell R730ASUS Z9PE-D8 WS
CPUIntel(R) Xeon(R) CPU E5-2690 v3 @ 2.60GHzIntel(R) Xeon(R) CPU E5-2650 0 @ 2.00GHz
CPU sockets22
NUMA nodes12 per socket8 per socket
RAM64GB64GB
NICNT200A01NT200A01



The Dell R730 will be running the OVS+DPDK environment and the ASUS the TRex traffic generator.

Setup used to test OVS mirroring

OVS mirror test setup

The OVS+DPDK will be configured to have the following topology in the different tests

TopologyTests
1 physical + 1 virtual port1a, 1b
1 physical + 3 virtual ports2a, 3a
2 physical + 2 virtual ports2b, 3b, 3c

The VMs will be running the following programs

  • ‘monitoring – a very simple DPDK application based on the ‘skeleton’ example but with the addition that it shows throughput on stdout every second
  • ‘testpmd’ – a standard DPDK test application. This application can be configured to forward packets to specific MAC addresses, so it is very useful when creating the chain shown in the picture above.

OVS+DPDK will be running in standard MAC learning mode, it will learn which port has which MAC address and automatically create forwarding rules based on this behavior. The traffic generator and the VMs are configured like this:

MAC addressCommand to forward to next recipient
TRex00:00:00:00:00:10Set destination MAC to 00:00:00:00:00:01
VM100:00:00:00:00:01./testpmd -c 3 -n 4 — -i –eth-peer=0,00:00:00:00:00:02 –nb-cores=1 –forward-mode=mac
VM200:00:00:00:00:02./testpmd -c 3 -n 4 — -i –eth-peer=0,00:00:00:00:00:10 –nb-cores=1 –forward-mode=mac

Tests

Finding the baseline

The baseline tests were achieved by configuring TRex to generate 64B packets at 40Gbps and monitor the output in either the ‘monitor’ app or the TRex statistics. The baseline results showed the following:

RX onlyForwarding
OVS+DPDK7.9Mpps7.6Mpps
OVS+DPDK full offload14.7Mpps6.5Mpps



./monitor

…

Core 0 receiving packets. [Ctrl+C to quit]

Packets:      7931596 Throughput:     3807.166 Mbps

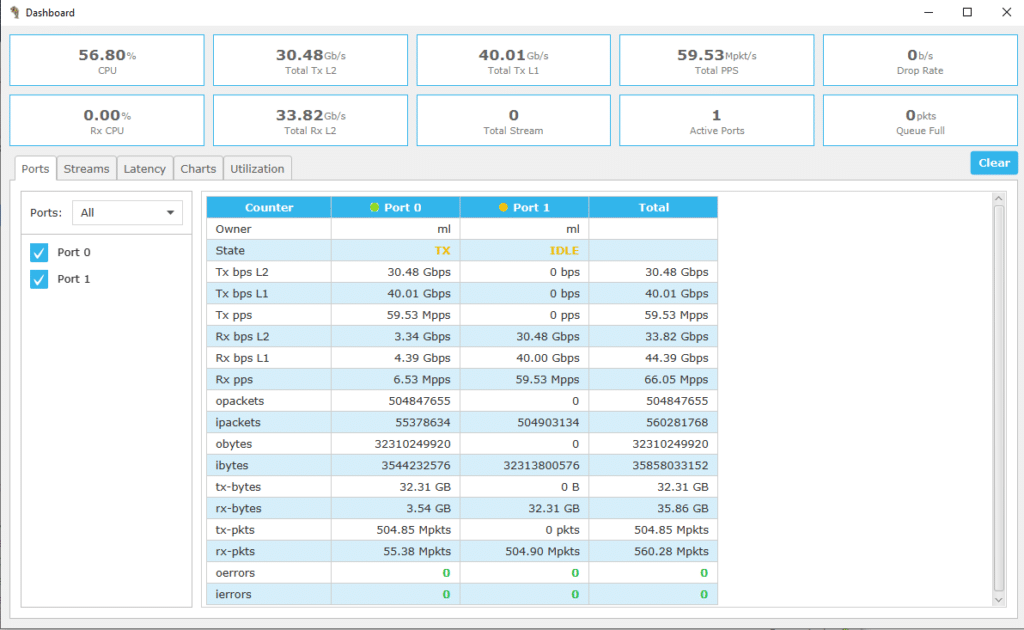

VM forwarding baseline in OVS+DPDK

OVS+DPDK VM forwarding baseline

./monitor

…

Core 0 receiving packets. [Ctrl+C to quit]

Packets:     14735328 Throughput:     7072.957 Mbps
VM forwarding baseline

VM forwarding baseline – OVS full offload



A common baseline for the two test scenarios will be to forward 6Mpps (64B packets) from TRex. This will allow each VM to handle zero loss forwarding and remain within the capabilities of the physical mirror port running 40Gbps because it will need to transmit the forwarded traffic 3x times.

Mirror to virtual port

The virtual port mirror is created using the following command for OVS+DPDK

ovs-vsctl add-port br0 dpdkvp4 -- set Interface dpdkvp4 type=dpdkvhostuserclient options:vhost-server-path="/usr/local/var/run/stdvio4" -- --id=@p get port dpdkvp4 -- --id=@m create mirror name=m0 select-all=true output-port=@p -- set bridge br0 mirrors=@m

and like this for OVS+DPDK full offload

ovs-vsctl add-port br0 dpdkvp4 -- set interface dpdkvp4 type=dpdk options:dpdk-devargs=eth_ntvp4 -- --id=@p get port dpdkvp4 -- --id=@m create mirror name=m0 select-all=true output-port=@p -- set bridge br0 mirrors=@m

The ‘monitor’ app is used in VM3 to determine the throughput of the mirror port, but  the RX statistics of TRex (port 0) is also observed to see if activating the mirror affects the forwarding performance.

Monitoring VM (Expect 18Mpps)TRex RX (Expect 6Mpps)
OVS+DPDK7.8Mpps2.7Mpps
OVS+DPDK full offload14.9 Mpps6.0Mpps



VM -> Vm forwarding with virtual port mirror running on OVS+DPDK

VM -> VM forwarding with virtual port mirror – OVS+DPDK



VM -> VM forwarding performance running OVS offload

VM -> VM forwarding baseline – OVS offload

The native OVS+DPDK really suffer in this test, both the mirror VM and the forwarding path are greatly reduced in performance.

Mirror to physical port

The physical port mirror is created using the following command and it is the same for both OVS+DPDK and the fully offloaded version:

ovs-vsctl add-port br0 dpdk1 -- set interface dpdk1 type=dpdk options:dpdk-devargs=class=eth,mac=00:0D:E9:05:AA:64 -- --id=@p get port dpdk1 -- --id=@m create mirror name=m0 select-all=true output-port=@p -- set bridge br0 mirrors=@m

The TRex statistics on port 1 are used to determine the throughput of the mirror port. The TRex port 0 shows the forwarding performance.

HW mirror (Expect 18Mpps)TRex RX (Expect 6Mpps)
OVS+DPDK8.6Mpps2.8Mpps
OVS+DPDK full offload18.0 Mpps6.0Mpps

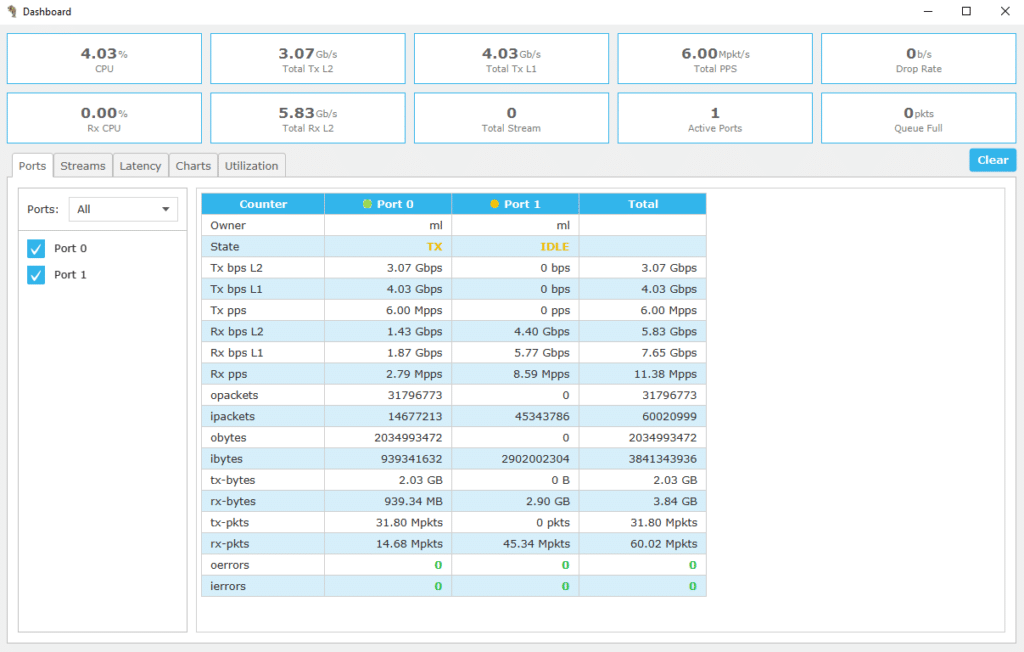

VM -> VM forwarding - Physical mirror port

VM -> VM forwarding – Physical mirror port – OVS+DPDK



Physical mirror port - VM -> VM forwarding

VM -> VM forwarding – Physical mirror port – OVS full offload

In this test the native OVS+DPDK also suffer performance degradation both on the mirror and forwarding path.

Mirror to ‘host tap’

The mirror to a host application uses the same setup as the physical mirror port.

HW mirror (Expect 18Mpps)TRex RX (Expect 6Mpps)
OVS+DPDK full offload18.0 Mpps6.0Mpps



root@dell730_ml:~/andromeda# /opt/napatech3/bin/capture -s 130 -w

capture (v. 0.4.0.0-caffee)

…

Throughput: 17976315 pkts/s, 11312.309 Mbps



Evaluation

The test results clearly show the potential of offloading the mirror functionality. I performed another test after all the results had been gathered, as I had not considered the forwarding performance from a VM to another VM, as part of the baseline. The results here were interesting because it turned out that the forwarding between two VMs in native OVS+DPDK affect the overall forwarding performance. I was not able to get all 6Mpps forwarded in the case of native OVS+DPDK whereas the fully offloaded version showed no issues.

VM -> VM forwarding running OVS+DPDK

VM -> VM forwarding – OVS+DPDK


VM -> VM forwarding performance running OVS offload

VM -> VM forwarding baseline – OVS offload

Future work

The full offload of OVS shows great potential and we can take it even further. The Napatech mirror solution can also provide packet filtering on the mirrored traffic whereby the actual traffic going out of the mirror port is reduced enabling the monitoring application to only receive what it has interest in seeing. The filtering was not made available at the time of this blog, but it is a rather quick thing to do, so I might come back to that at a later point.
